Refrigeration Scroll Compressor (ZR38K5E-PFV-800 )
1.Products introdutions:
| Brand name |
compressor |
| Model |
ZR38K5E-PFV-800 |
| Voltage |
208-230V |
| Air volume(m3/h) |
11.39 |
| Nominal capacity(kw) |
3.55 |
| Refrigerant |
R22 |
| N.W. |
30kg |
| G.W |
35kg |
2.Detail introduction:
Type: Scroll
Refrigerant: R-22
Rated Load Current (A): 21.4
Max. Continuous Current (A): 30.0
Locked Rotor Current (A): 112.0
Crankcase Heater: Not Included
Refrigerant Oil: POE
Suction Line Location: 2
Suction Line Height (in.): 11-3/16
Suction Line Configuration: Stub Out
Suction Line Size (in.): 7/8
Discharge Line Location: 3
Discharge Line Height (in.): 15-7/16
Discharge Line Configuration: Stub Out
Discharge Line Size (in.): 1/2
Overall Compressor Height (in.): 16-7/16
Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
3.Electrical data:
Power supply [V/~/Hz]: 208-230V/3/50Hz
Locked rotor current [A]: 112,0
Max. operating current [A]: 25,0
4.Electrical data:
Power supply [V/~/Hz]: 208-230V/3/50Hz
Locked rotor current [A]: 112,0
Max. operating current [A]: 25,0
5.Scroll Compressors:
When first pioneered the use of scroll technology in compressors, it changed the industry forever. Since then, Scroll technology remains at the forefront
for HVACR applications, impressing contractors and original equipment manufacturers (OEMs)
with its superior efficiency, proven reliability and ease of installation.
6.Efficiency:
Approximately 35 percent of the electrical energy consumed each year in the United States is used by HVACR systems. Compressors
make up a vast majority of the energy used in air conditioning and refrigeration systems. That means compressor selection is key to
improving the overall efficiency of HVACR systems. The inherent design of Scroll compressors makes them a preferred choice
for more energy-efficient systems. In fact, Scroll compressors play a key role in helping the industry throught major transitions
like the 1992 move to a 10 SEER standard and the industry's shift in 2006 to a 13 SEER minimum. As the industry prepares for another regulatory
change - this time the phaseout of R-22 refrigerants in favor of the more environmentally friendly R-410A - it will benefit from the versatility and efficiency of scroll compressor technology.
7. Product qualification
Certificate, certification, patent certificate:
1)."Quality Management System Certification"
2)."Shenzhen Science and Technology Enterprise Certification"
3)."Refrigeration Equipment Air Conditioning Maintenance and Installation Enterprise Qualification Certificate"
Product Tags:
|
|

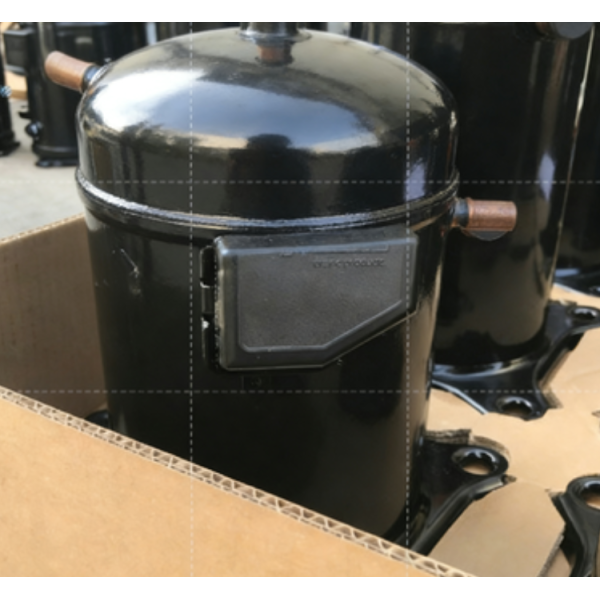

R22 ZR38K5E-PFV-800 208-230V Hermetic Scroll Compressor Images
|
